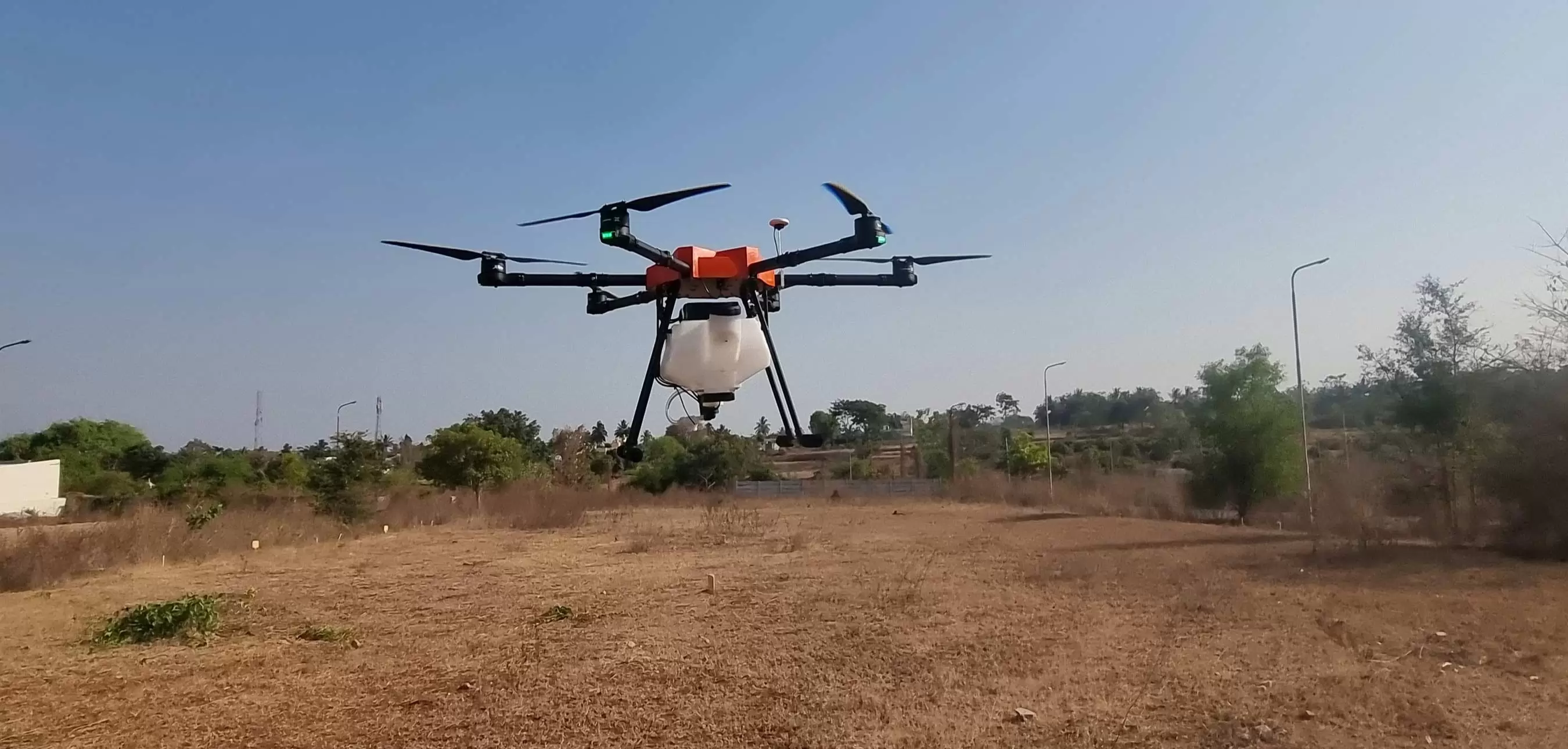

KRUSHAK AI 10A


The KRUSHAK AI 10A is an agricultural spray drone developed by Krushaka Unmanned and Airborne Solutions. Designed specifically for use in various agricultural settings, this multi-rotor drone can operate effectively in fields, forests, and other terrains. Its dustproof construction features a lightweight yet durable combination of aluminum and carbon fiber reinforced plastic (CFRP).

Equipped with an advanced flight controller, the drone offers excellent stability and user-friendly flight modes, thanks to its dual CPU setup and triple redundant backup system. Its integrated terrain-following sensor and obstacle avoidance technology allow the drone to navigate complex landscapes while avoiding obstacles. The drone is spacious enough to accommodate key equipment, including the battery, GPS, flight control system, power distribution board, and data transmission components. Additionally, its new water-saving nozzles help conserve pesticides while improving the efficiency of spray coverage.

The KRUSHAK AI 10A features a Hexagonal folding structure design for quick folding and easy storage. The modes feature an option for the users to mark obstacles outside the task area during field planning, for the aircraft to avoid. The drop pin can be used to add boundary and obstacle points in field planning, making operations easier than ever for users. The Spraying system is equipped with a brushless diaphragm pump and a flow meter to offer even and accurate spraying. The nozzles are offered in 2 configurations, centrifugal-powered nozzles and Static Nozzles with hollow cone nozzle tips.

10 Litre Liquid Payload
20 Min Endurance
6 acres per hour, 30 acres per day
Easy Mapping Support Device
30 Min fast Charge


High Accuracy - 1.5 m Landing accuracy
High Precision - Right Quantity
High Speed - 6 mins / acre
High effectiveness - 60 Droplets / sq. cm


Low Cost per acre: Rs. 210 per acre
Reduce Input costs upto 25%
Increase usage effeciency




Feature Specification


Specification Details
Classification MEDIUM Class with MTOW of 27.5 kg
Structure Rotorcraft Hexacopter, All Carbon Fibre - Aluminium
Endurance Full Payload - 12 Mins, Variable Payload - 21 mins, sufficient to cover 3 acres
Battery 2 x 6S, Li-Ion Batteries, 25,200 mAh
Designed FOS Above 1.5
Maximum Operational Altitude Upto 3,000 m AMSL, Restricted to 40 m AGL
Maximum Speed 10 m/s, recommended operational speed 6 m/s
Additional Safety Pre-Installed Obstacle Avoidance RADAR and Terrain Following RADAR
Failsafe Functionalities Failsafe from: Battery, Communication Loss, Automatic Obstacle Stop, High Vibration & Geo-Fence, Motor - Overcurrent Protection
Intelligent Functions Return to Home on Empty Tank, Break Points for Resuming Spraying Function
Flight Controller Dual CPU Flight Controller, with Redundant Compass and IMU
Spraying System 4 x Static Nozzles or 2 x Centrifugal Atomizers
